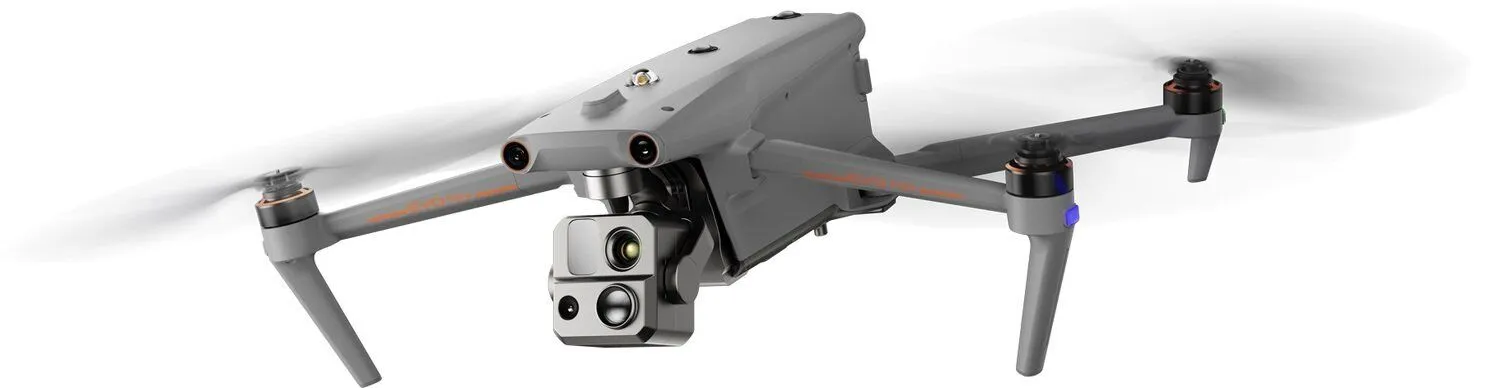

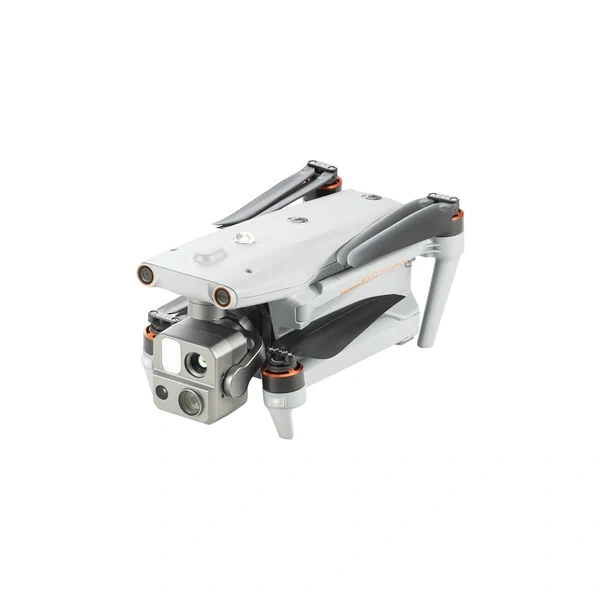

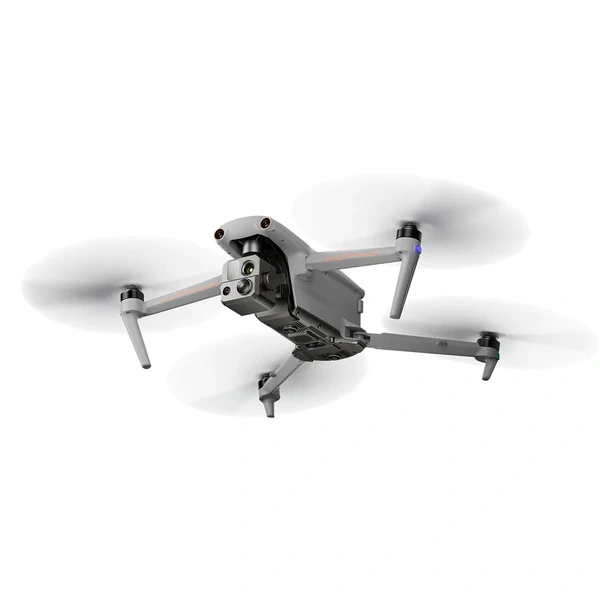

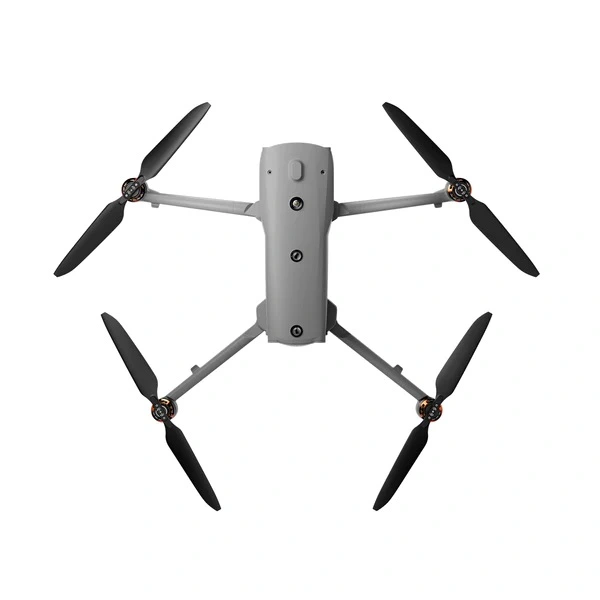

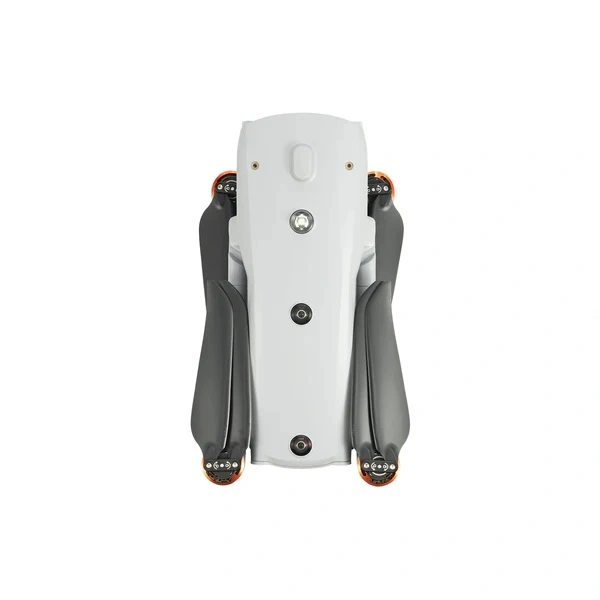

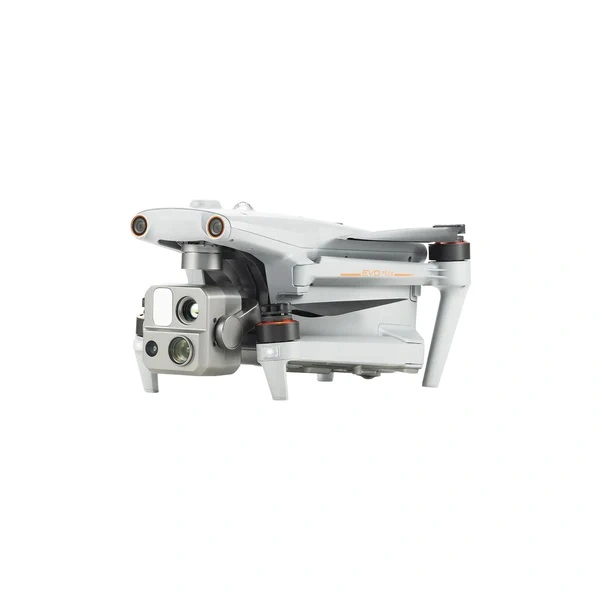

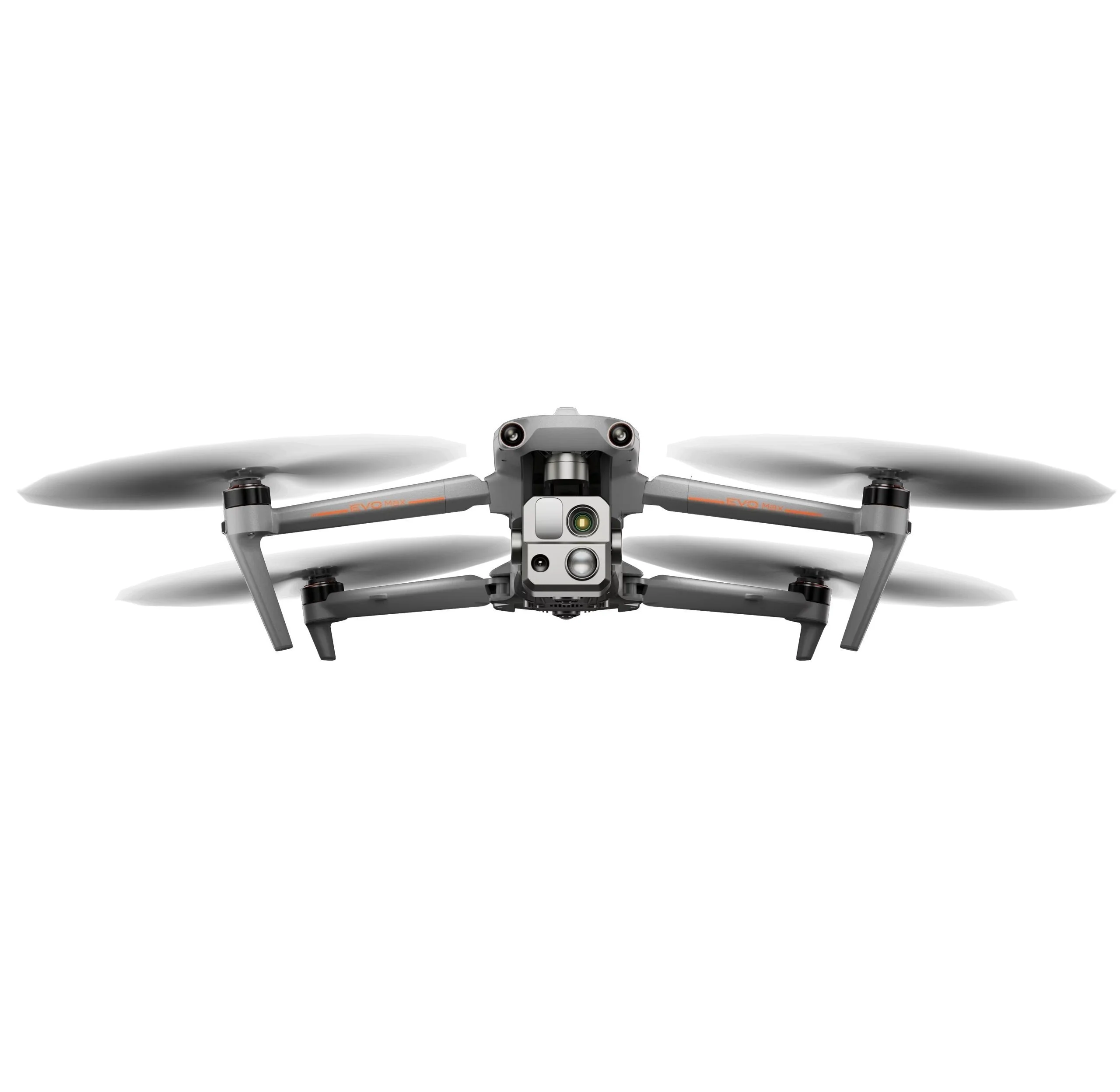

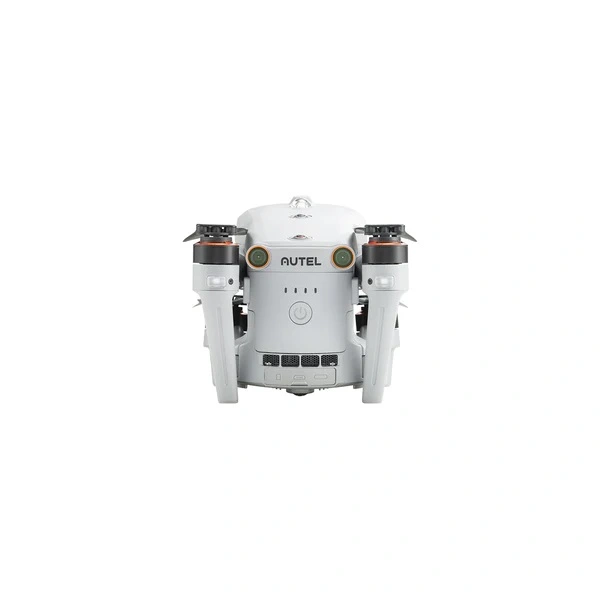

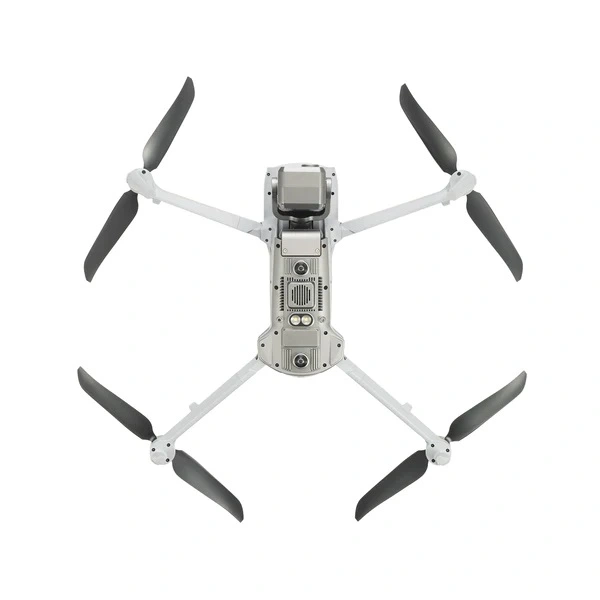

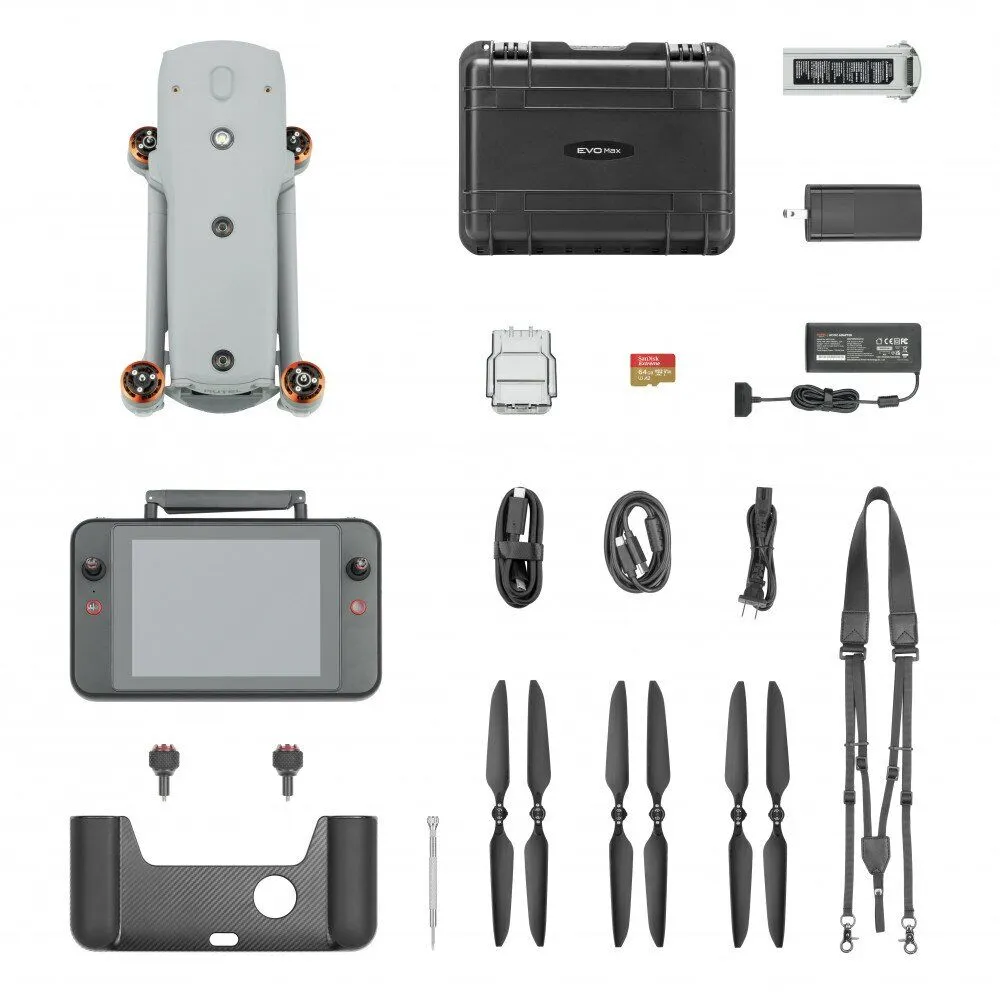

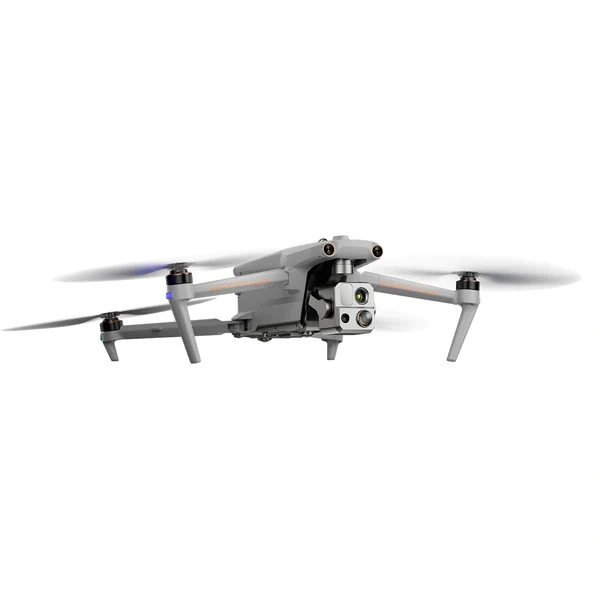

Дрон Autel EVO MAX 4T Standard Bundle (без аккумулятора)

AUTEL EVO MAX 4T

Reach New Frontiers

• No Blind Spots
• Anti Jam
• Anti Interference

Features

• 50MP Zoom Camera or 0.0001 LUX Starlight Camera
• 640×512 Thermal Resolution
• Hot-Swappable Batteries
• IP43 Weather Rating
• 42 min Max. Flight Time
• 12.4 Miles Transmission Range
• 13,124 ft Service Ceiling
• 27 mph Max. Wind Resistance
• 720° Obstacle Avoidance

Auto Path Finding

Autel's Autonomy Engine collects surrounding environmental data and plans 3D flight paths through complex environments such as mountains, forests, and buildings. Use cases include rapid 3D scene reconstruction, public safety overwatch, industrial inspection, and land surveying.

Navigation in GPS Denied Environment

Advanced sensors allow the EVO Max series to navigate within hardened structures, underground, or in environments without GPS.

Accurate Object Identification and Tracking

Based on Autel's AI recognition technology, the EVO Max series can automatically identify and lock onto different types of targets such as heat sources, moving people, or vehicles and achieve high-altitude tracking and data collection for law enforcement.

No Blind Spots

The EVO Max series is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the onboard Autel Autonomy Engine to perceive objects down to 0.5 inches, eliminating blind spots and enabling operation in low light or rainy conditions.

Anti Jam, Anti Interference

The EVO Max series uses advanced flight control modules and algorithms specially designed to counter RFI, EMI, and GPS spoofing. This enables the EVO Max series to fly confidently near power lines, critical structures, and in complex areas.

A-Mesh 1.0

The Industry's First Mesh Networking

EVO Max series features the new A-Mesh system, enabling drone-to-drone autonomous communication, connection, and collaboration.

Enhanced Range

Communication nodes can be placed statically on hills or poles to provide full coverage to an area, or a swarm of drones can provide mobile communication points to extend the coverage of the entire group.

Beyond-Line-of-Sight Applications

With A-Mesh, multiple drones in the vicinity can act as relay points to greatly improve BVLOS operation effectiveness.

Enhanced Anti-Interference

The EVO Max series can communicate seamlessly with other drones in the vicinity, unlike a traditional chain structure. If a single drone fails or exits unexpectedly, the entire system will independently self-organize and continue to relay critical information.

Full-Fleet Control

Multiple drones can be controlled autonomously by 1 pilot or by a group of pilots simultaneously with or without LTE coverage.

Autel SkyLink 3.0

SkyLink 3.0 system of The EVO Max Series comes with 6 antennas, 4 frequency bands, AES-256 encryption, and optional 4G integration to provide users with the most advanced flight capabilities ever in an EVO.

• 12.4 miles Image Transmission Distance

• <150ms Latency

• 1080P@60FPS Real-Time Image Quality

• 900MHz/2.4GHz /5.2GHz/5.8GHz Frequency Bands

Mission Ready Payload

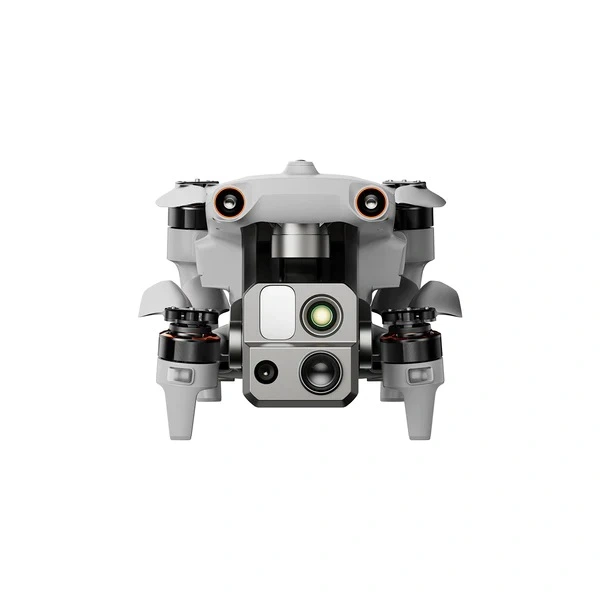

The payload integrates starlight camera, wide-angle camera, zoom camera, thermal camera,and a laser rangefinder for all data capture needs and critical decision making.

EVO Max 4T

• Zoom Camera
  48MP
  8K 10x Optical Zoom
  160x Max. Hybrid Zoom
  Aperture: f/2.8–f/4.8
• Wide Camera
  50MP
  1/1.28" CMOS
  Aperture: f/1.9
  DFVO: 85°
  Equivalent: 23 mm
• Thermal Camera
  640×512
  Aperture: 13 mm
  16x Digital Zoom
  Range: -20 °C to 550 °C
• Laser Rangefinder
  Measuring Range: 5 – 1140 m
  Measurement Accuracy: ± (1 m + D×0.15%)

Chase the Heat and Explore the Night

• Starlight Camera (4N)
• Super Zoom (4T)
• Supersensitivity
• Strong Infrared Perception
• Accurate Ranging

Autel Enterprise App Platform

The Autel Enterprise App is built from the ground up for industrial applications and features a brand-new interface for simple, efficient operation. Additional features and semi-autonomous modes maximize the EVO Max series' mission capability.

Smart Features

• 3D Map Planning

Plan, create, and execute 3D waypoint missions on a 3D map, and switch map sources as required.

• Quick Mission

Temporary missions can be created while executing other missions, and multiple sub-missions can be stacked for enhanced flexibility.

• Mission Reproduction

The EVO Max series automatically records the camera angles and replicates the mission you just flew.

Multiple Mission Types

The Enterprise App provides various autonomous and semi autonomous mission planning for public safety, inspection, and surveying.

• Vertical Scan

Perform vertical surveys for building facades,
open pit walls, and towers.

• Corridor Mission

Supports intuitive and effective corridor mission planning for roads, rivers, pipelines, power lines and other narrow,large-scale terrain.

• Polygon Mission

Supports one-click automatic generation of polygon flight areas.

• Terrain Follow

Maintain relatively constant altitude from the
ground for uneven or sloped terrain.

• Rectangular Mission

Supports one-click automatic generation of
a rectangular flight area.

• Automatic Mission Generation And Data Capture

Automatically produce routes by adding regional boundary
points through dots or importing KML files.

• Waypoint Missions

Users can add waypointsfor flexible, non-structured flight paths.

• Oblique Photography

Automatically plan 5 groups of routes (1 ortho + 4 oblique)
according to the flight area set by the user.

• Spiral Mission

Supports helical flight search in a designated area for SAR.

Data Security

Data* can only be physically accessed via the aircraft locally, and can be encrypted using AES-256 and passwords.

*User and aircraft information, including flight logs, locations, and accounts.

Enhanced Live-View

Multi-channel Projection Screen

Supports simultaneous output of RGB/night vision, infrared, and Map.

AR Scene

Geo-location data and other aircraft location info detected by ADS-B can overlay on real-time map, which is convenient for you to confirm the drone's location and avoid airborne risks.

Operating Environment

• IP43 Rating

• -4 ? to 122 ? Temperature

Complete Remote Operations System

Used with the EVO Nest, the EVO Max series supports all-weather auto piloting for scenarios such as substations, industrial parks, and rooftops.

Autel SDK

The Autel SDK is open to the world, helping developers and partners reduce software and hardware development costs and jointly create a new industry ecosystem.

• Mobile SDK

  Open UX SDK (iOS/Android) can directly call up the ready-made interactive interface.

Application

• Public Safety

• Search & Rescue

• Inspection

• Firefighting
